Ce and iso standard passed expressway plc control cold highway guardrail galvanized steel sheet beam roll forming machine

Product Description

CE and ISO standard passed expressway plc control cold highway guardrail galvanized steel sheet beam Roll Forming Machine
Machine attributes
After-sales Service Provided
Engineers available to service machinery overseas
Raw material
PPGI PPGL GI GL
Color of Machine
Customer request
Thickness
0.8-1.2mm
Cutting type
Hydraulic automatic shearing
Shaft type
solid
Roller processing
Quenching,chroming
Computer screen
Touch screen

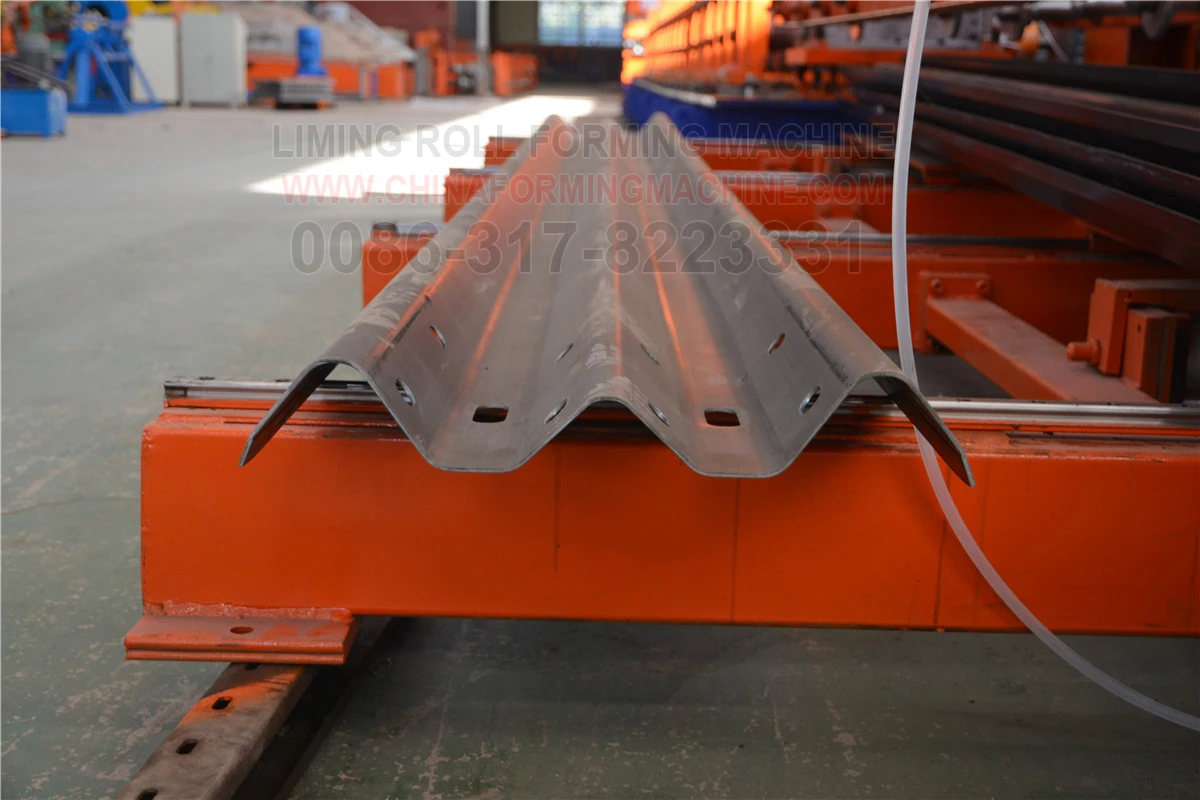

Highway Guardrail Forming Machine is a guardrail machine used to produce highway industry, and the finished product is highway guardrail. It is mostly used in safety guardrails on highways, national roads, provincial roads, urban roads, rural roads and other motor vehicle lanes.
The Highway guardrail produced by our Highway Guardrail Roll Forming Machine with good bending compression performance, flatness is good, automatic fixed length cutting, automatic punching, high degree of automation, fast and convenient installation.
Roller material
GCR15
Shaft material
High grade no. 45 carbon wrought steel
Cutting blade
Cr12 mould steel with quenched treatment
Diameter of shaft
70mm or as your requirement
Main frame
350 h steel
Hydraulic pressure
10-12mpa
Controlling system
Famous plc computer control
Material of cutting table
Cr 12 mould steel with quenched treatment
Hydraulic oil
40# hydraulic oil
Machine details and introduction

Cutting System

Meterial of the cutting:Cr12 mould steel with quenched treatment It can decide cut panel dimension acoording to the hydraulic drive and Plc computer control system.

Roller System

Meterial of the roller:GCR15 Roller station:17rows Thickness of feeding meaterial:0.8-1.2mm

Mengniu archway

This structure uses double bearing,can make the production process much mor smoothly,less noisy,longer sevice life.
Uncoiling system
The structure is stable, the material is strong, the appearance is beautiful, and it has the function of preventing material stripping. While ensuring the normal operation of the machine, we have combined the problems of the original machine and added a baffle for the uncoiling part to prevent the raw material from falling off after the machine stops.
PLC Control Cabinet

Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
This is the engineer's test of the hardness and speed of the machine parts to ensure the high-speed and stable operation of the machine and improve work efficiency
Liming Stamping Form Machine Co.,Ltd. occupies an area of 156,000 square meters and 6 large production plants. It has been established in 1996 with many years of production experience, serving 156 countries, 4 international machinery patents, 10 Chinese machinery patents, nationally certified high-tech company.China's top three steel-building materials equipment factories. Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, Downpipe Machine, Gutter machine, etc.
Warranty: Two years, and we will provide technical support for wholelife of the equipment. If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Packing Method:Main machine is packaged with plastic film. Transportation:All machines need one 40 feet container to hold. Payment Term:30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment. Delivery Time:Within 35 days after receiving deposit.
Q1: Can you customize the machine from your company?
A1: Of course, we can manufacture the machine according to your customized size demand.
Q2: How is the quality? Is there any department related to quality control?
A2: All raw materials we use are quality controlled.Workers will take care of every detail when handling production and packaging. The quality control department is responsible for the quality of each process.
Q3: Is the packaging form?
A3: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
Q4: How about after-sales service?
A4: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp.and many more Two-year warranty and parts replacement.
Q5:How to visit your company?
A5:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours) Then we can pick up you.

Contact us if you need more details on Highway Guardrail Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Highway Guardrail Making Machine、Highway Guardrail Roll Forming Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
