light steel furring channel frame roll forming machine
|Payment Type:||L/C,T/T,D/P,Western Union,D/A|
|Terms of Trade:||FOB,CIF|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Packaging:||as customer's need|
|Place of Origin:||China(mainland)|
|Supply Ability:||20 sets/month|
|Certificate:||CE, ISO, SGS, IAF,CNAS|
Model No.: ZT-006-105

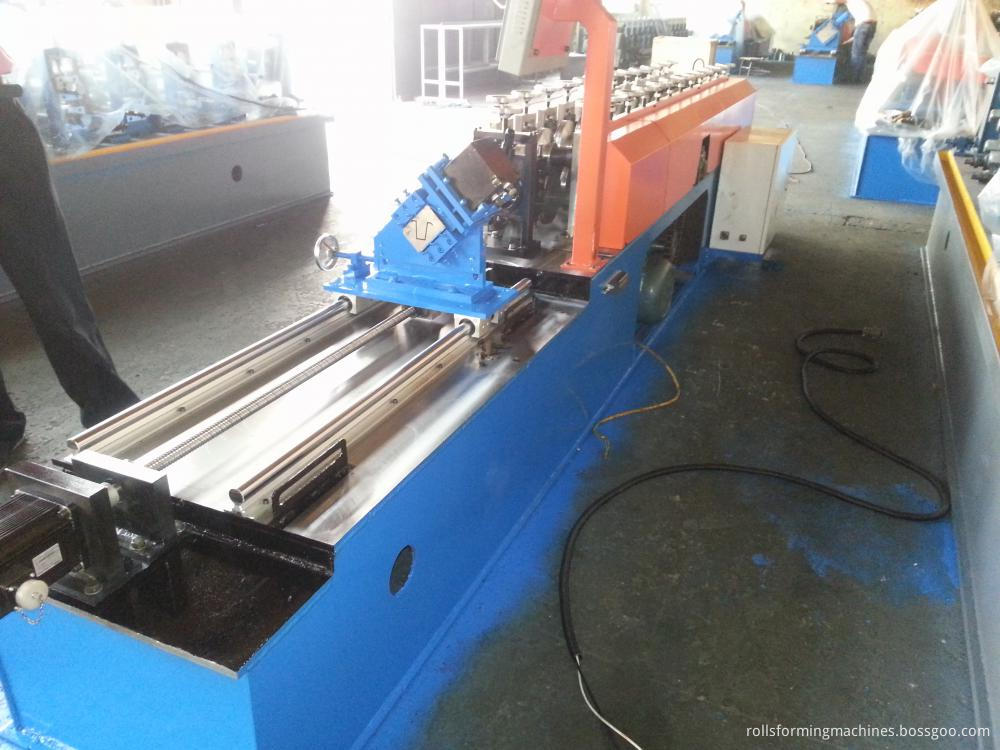

light steel furring channel frame Roll Forming Machine
Light steel furring channel frame roll forming machine is with high stability, no noise, no shake. The whole process of producing furring channel frame is controlled by computer, PLC disply. The machine is easy to operate. Hydraulic drive to cut the target length. Various furring channel frame can be customized.
furring channel frame machine feasure
1. Continunious production work, without stop to the bending forming section.
2.Furring Channel Frame Machine Final products with good bending pressure performance.
3. light steel furring channel frame roll forming machine has high degree of automation , easy to install and use.
furring channel making machine Application range:
The furring channel frame can be used in medium-sized factory, civil building, warehouse, machine garage, exhibition halls, theatres, stadiums, fairs roof and so on.
furring channel frame Flow chart
Decoiler-- Roll Forming--PLC System-Hydraulic System --Cutting Output Table
Main elements of furring channel frame machine
1.Decoiler 1 set
2.main roll forming machine 1 set
3.punching maching(as customer's need) 1 set
4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)
5.PLC control 1 set
6. Omega Roll Forming Machine Counter 1 set
7.hydraulic station 1 set
8. Omega Roll Forming Machine receiving table 1 set
Parameters of keel Furring channel roll forming machine
1. Decoiler Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Loading capacity: 1.5T
Uncoiling width: 300mm
Inner diameter: 450-550mm
2. Furring Channel Making Machine Feeding and leveling
This part will level coil to make sure it is neat clean and straight. Meanwhile the roller will punch dots at both side of the C channel.
3.main Roll forming machine
Weight t: 2.6 tons
Voltage:380V/50HZ3Phase(as customer`s request)
Roller fixer : Guide column
Furring Channel Making Machine Frame : middle plate welded
Memorial arch frame type
Drive mode: gear
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ40mm
Ceiling furring channel Mill Number of rollers : 10rollers
Main power: 4kw ( Cycloidal planetary gear speed reducer)
4. Shearing machine Together with punching words, cutting will be done together.
Material of blades: Gcr12 quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact
5. Hydraulic Station
Hydraulic motor Power: 3kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And three sets of electromagnetism valves.
6. Omega Forming Machine for ceiling Electric Control System: Delta from TaiwanVarious furring channel frame can be customizedVarious furring channel frame can be customized.
Various keel ceiling profile can be customized , there are some for your reference
