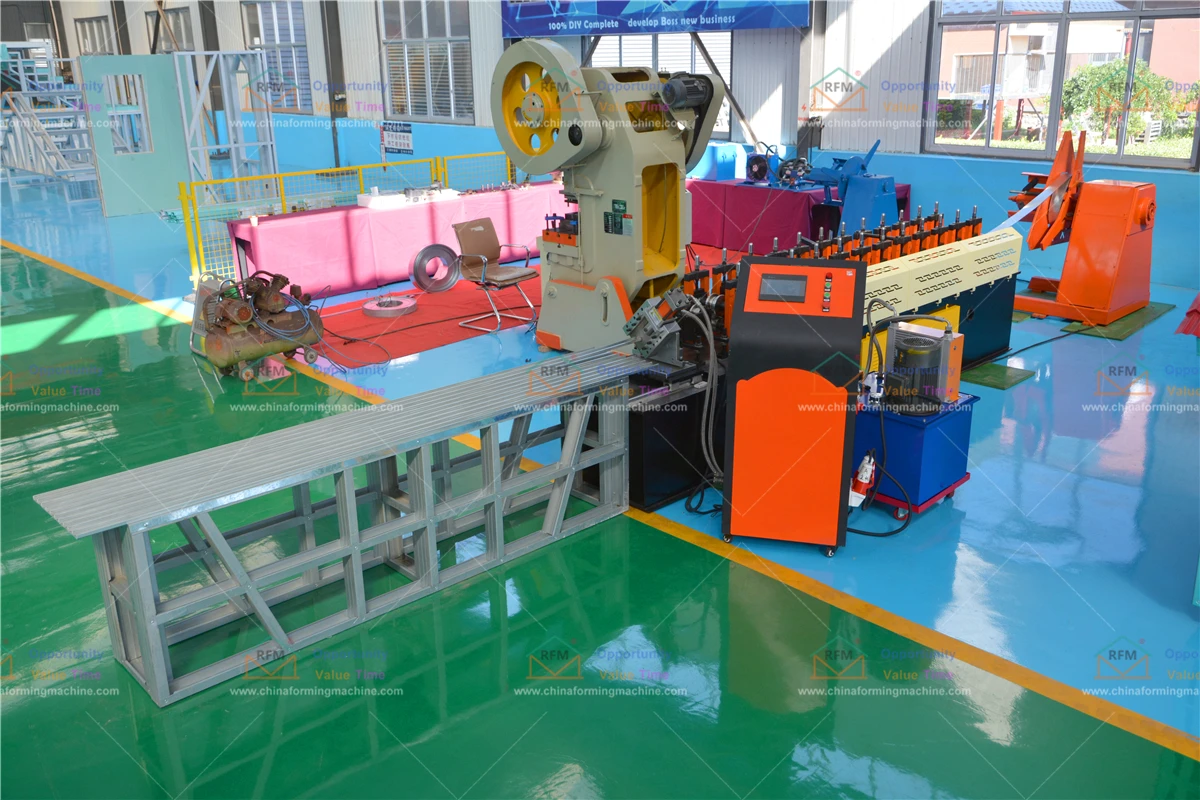

High productivity metal suspended ceiling machine c channel roll forming machine

Product Description

High productivity metal suspended ceiling machine c channel Roll Forming Machine
Machine attributes
After-sales Service Provided
Engineers available to service machinery overseas
Raw material
PPGI PPGL GI GL
Control system
PLC(imported Brand)
Shafter material
45# steel
Cutting type
Automatic Hydraulic Cutting
Cutting blade material
Cr12 Mov with quenched treatment
Color of Machine
Customer request
Machine structure
Vertical arch frame sturcture
Roller shaft material
45#steel with quenched treatment
Roller station
12 stations or according to profile
Drive type
By chains drive
PLC brand
Delta or as your required
Frequency brand
Delta or as your reqiured
Work speed
30 m/min
We can provide a solution to the problem of insufficient accuracy of materials produced by C channel roll forming machines encountered by production workers during the machine production process in the construction manufacturing industry.
Machine details and introduction

Cutting System

Meterial of the cutting:Cr12Mov with quenched treatment. It can decide cut panel dimension acoording to the hydraulic drive and Plc computer control system.

Roller System

Meterial of the roller:High grade No.45 forged steel. Roller station:12 rows Thickness of feeding meaterial:0.3-0.8mm

Mengniu archway

This structure uses double bearing,can make the production process much mor smoothly,less noisy,longer sevice life.
Uncoiling system
The structure is stable, the material is strong, the appearance is beautiful, and it has the function of preventing material stripping. While ensuring the normal operation of the machine, we have combined the problems of the original machine and added a baffle for the uncoiling part to prevent the raw material from falling off after the machine stops.

Feeding platform
The 4-point adjustment handwheel can be adjusted arbitrarily with high adjustability. Galvanized metal frame with anticorrosive double rollers to avoid sheet scratches. It has the function of feeding guide to ensure that the position of the raw materials before entering the molding die is centered and reasonable.
PLC Control Cabinet

Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.

A variety of styles to choose from, support drawing customization!
This is the engineer's test of the hardness and speed of the machine parts to ensure the high-speed and stable operation of the machine and improve work efficiency
Liming Stamping Form Machine Co.,Ltd. occupies an area of 156,000 square meters and 6 large production plants. It has been established in 1996 with many years of production experience, serving 156 countries, 4 international machinery patents, 10 Chinese machinery patents, nationally certified high-tech company.China's top three steel-building materials equipment factories. Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, Downpipe Machine, Gutter machine, etc.
Warranty: Two years, and we will provide technical support for wholelife of the equipment. If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Packing Method:Main machine is packaged with plastic film. Transportation:All machines need one 40 feet container to hold. Payment Term:30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment. Delivery Time:Within 35 days after receiving deposit.
Q1: Can you customize the machine from your company?
A1: Of course, we can manufacture the machine according to your customized size demand.
Q2: How is the quality? Is there any department related to quality control?
A2: All raw materials we use are quality controlled.Workers will take care of every detail when handling production and packaging. The quality control department is responsible for the quality of each process.
Q3: Is the packaging form?
A3: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
Q4: How about after-sales service?
A4: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp.and many more Two-year warranty and parts replacement.
Q5:How to visit your company?
A5:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours) Then we can pick up you.

Contact us if you need more details on Suspended Ceiling Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Metal Ceiling Machine、C Channel Roll Forming Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
